G-Code Setup

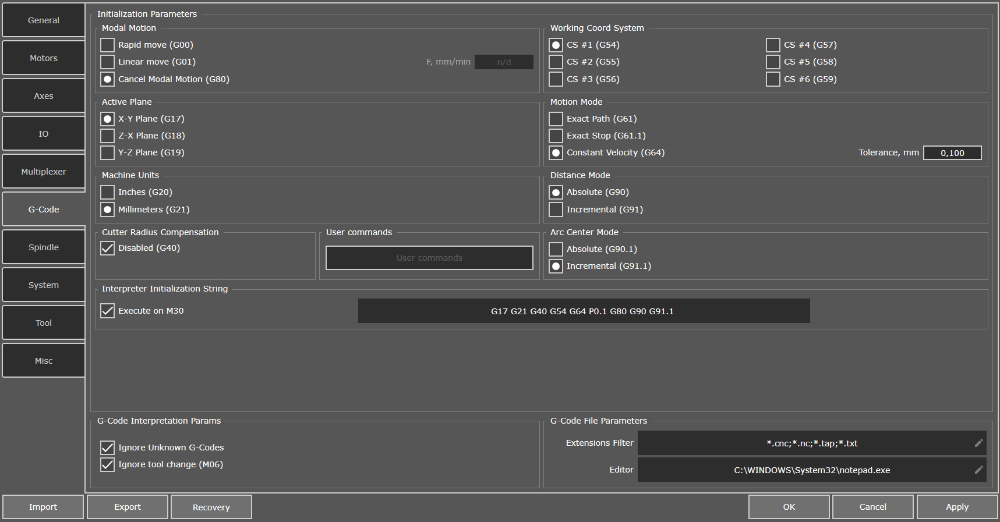

The "G-codes" settings tab allows you to define the system initialization string (to set the modal parameters of the state of the G-code interpreter by default). Modal parameters (codes) are valid indefinitely within a session with the system after their installation and can only be canceled by another code from the same modal group. These parameters are used when working with the NC and can be further redefined directly in its code or using G-code commands entered into the system manual control line. The initialization string is applied once when the system is turned on or when the user changes the configuration.

See the section Description of G-codes for more information on the features of G-codes.
